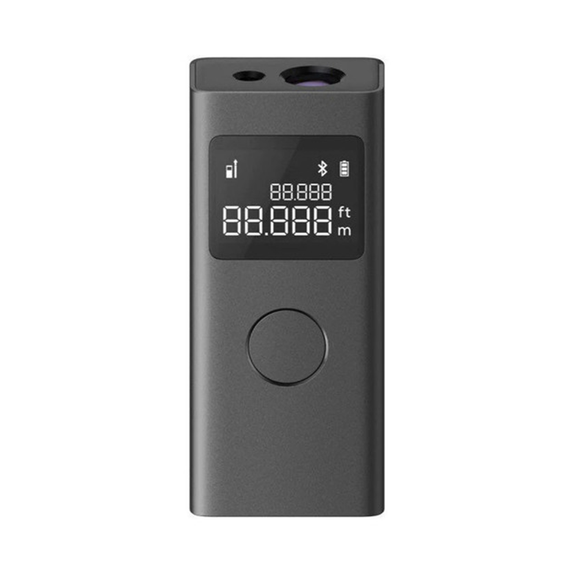

Xiaomi Smart Laser Measure

Easy measurement anytime and anywhere
One-tap real-time measurement | 3mm high precision. Intelligent real-life measurement | Synchronous storage of data

±3mm high precision measurement*
10 smart measurement functions in the Mi Home/Xiaomi Home app
3000 measurements when fully charged*
100000 industrial grade durability tests

Real time ranging to measure wherever you want
After a brief press to emit the laser, the length can be read in real time. The measure adoptes a precise and stable Class II laser*, which reaches the distance as close as 5cm and as far as 40m. Measure anything anytime.

Dual-emission with single receiver
Millimetre-level measurement precision
Equipped with a dual-emission single-receiving laser head. The complex procedures of Laser emission > Calibration > Data Display can be completed instantly. Data precision drops within ±3mm.
Dual-emission single-receiving
±3mm laser precision*

Quick measurement with one hand in different scenarios
From large areas like a new home or a warehouse, to the door and window sizes, you can tap to see the results on the measure immediately.

Expand the functions via the Mi Home/Xiaomi Home app
By connecting a smartphone via Bluetooth, you can link the laser measure with Mi Home/Xiaomi Home app to realise more functions such as data synchronisation/remarks, length/area/volume calculation, floor plan mapping, map sharing, and effect viewing.
Floor plan with real-time mapping and surveying
You can draw the floor plan directly in Mi Home/Xiaomi Home app or draw and measure with photos. The measured data will be automatically marked to the selected line, and the app will intelligently adjust the line based on the data marked.
Remote control measurement with your smartphone
Your smartphone can be used as "a remote control for measuring distance" to remotely control the measure. It does a great help when the measure must be placed at a fixed point or cannot be measure the super smooth plane, a narrow gap and or the vertical distance.

Preview with home appliance recommendations
The innovative "See the Effect" function can intelligently recommend suitable home appliances according to the room size and display the effect in real scenes.

Easy calculation of area/volume/length
You can flexibly select existing length, width, and height data for the area and volume calculation, or simply add or subtract to calculate the length. Multidimensional scales are at hand.

Single button design
Easy to operate with one button only
It only has one control button. Long press 2 seconds to start, short press to measure, and double tap to switch the front and back benchmarks. The single-button design makes it easy for you.
Long press 2 seconds to turn on/off
Short press to start/end recording measurement data
Double tap to switch the front and back benchmarks

High brightness LCD displayClear and easy
With the high brightness LCD display, the current measurement data, historical measurement data, measurement benchmark, measurement unit, battery status, and Bluetooth connection status are clear at a glance.
Dual matte finishWear and scratch resistance
Lightweight aluminium alloy with high-strength engineering plastics create a delicate matte appearance. Delicate matte texture surface with comfortable touch

Wireless lithium battery
Type-C port for easy charging Long-lasting battery life
370mAh high-capacity lithium battery for measuring 3000 sets of data at full charge. Type-C charging port can share charger cable with other electronic devices like smartphone.
